BMW F-Chassis & G-Chassis 78mm Adapter / Conversion Stud 14×1.25-12×1.5 Black Bullet Nose Stud Kit
BMW F-Chassis & G-Chassis 78mm Adapter / Conversion Stud 14×1.25-12×1.5 Black Bullet Nose Stud Kit
Couldn't load pickup availability

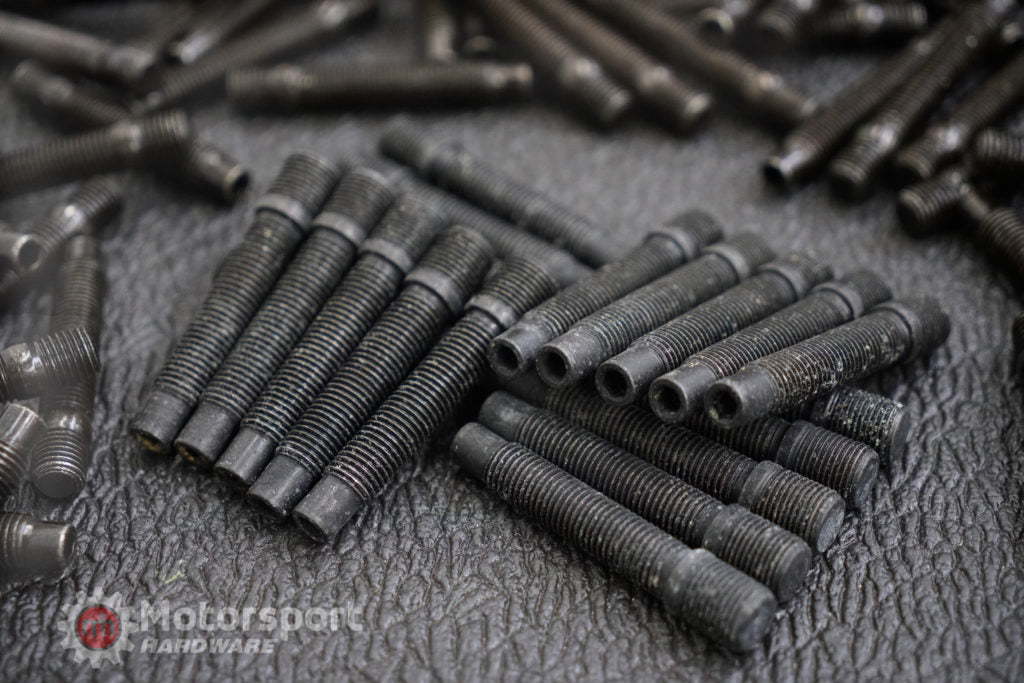

The extended stud kit makes it a breeze for taking your wheels on and off during those track days or standard maintenance. You can select multiple options on their website from adding spacers, lug nuts, colors and more. This extended conversion kit is made for the BMW F-Chassis & G-Chassis.
- Transition stud to convert 14×1.25 thread to 12×1.5 thread to more versatile nut options
- Great for F-Chassis BMW and Late Model Mini
- Great for 14×1.25 wheel applications with small lug holes (XXR, STR, etc.)
- Manufactured to meet ISO/TS and TÜV standards
- Fast start nut installation
- 14×1.25 Thread into the hub and 12×1.5 out towards the wheel
- Made in Europe
- Bullet Nose. OEM Style Black Zinc Finish
- Allen Key insert for easy install
- 10.9 grade hardness
- 78mm Studs will accept up to a 20mm spacer
- Torque to 90ft/lbs
- Please ensure you get at least 6.5 turns when tightening/torquing
Each kit comes complete for your vehicle (4-wheels)

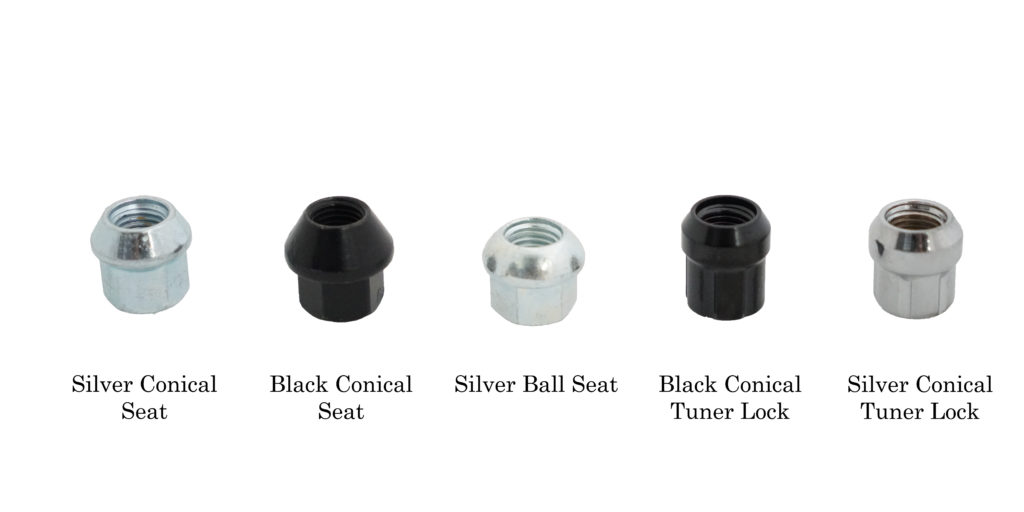

Standard Nut Options
– All nuts are open ended
– 17mm Nuts are standard for torque up to 105ftlbs
– 19mm Nuts are for High Durability and/or Torque up to 150ftlbs. Fits most OEM and Name brand wheels. Customer can verify by testing 19mm thin wall socket into wheel lug hole.
MH Racing Nut Options
SAVE NOW! Add MH Titan Race Nuts to your Stud Kit
– 17mm Hex Standard – For OEM and Aftermarket wheels with smaller diameter lug holes. Maximum Torque Value is 105ftlbs.
– 19mm HIGH TORQUE – For OEM wheels and Aftermarket wheels that take 19mm Hex and for High Torque values up to 150ftlbs.
You can use discount coupon code "M3List" to save on the entire Motorsport Hardware website at checkout!
